Overview
Crystal Chip Documentation Progress
Progress as of 3/3/2025
- Crystal Chip documentation
- Install Diagrams
- Video Tutorials
- Firmware & BootManager Installation
- Installing and Running Apps
- R34 v3 Changes (out of date), MMCE added
- Configuration options overview
- Using App MegaPacks
- Using PS2Client/Link to help debug
- Written Tutorials
- Files
- Firmware/Bootmanager
- BM Megapack by R3Z3N
- CD/USB Megapack
- SD2PSX/PSXMemcard Gen 2 Megapack
- MemcardPro 2 Megapack
- Default APPINFO.PBT
- PBT Scripting overview (wiki is outdated)
- Archived Websites
- Crystal Chip website
- Crystal Chip wiki
Option to repurchase
Option to Repurchase
If you happened to come to this page due to this sticker then I thank you very much!
Please email me here so that we may discuss futher as I would love to keep these chips in the hands of enthusiasts.
Crystal Chip versions
CC 1.1 to 2.0 Conversion

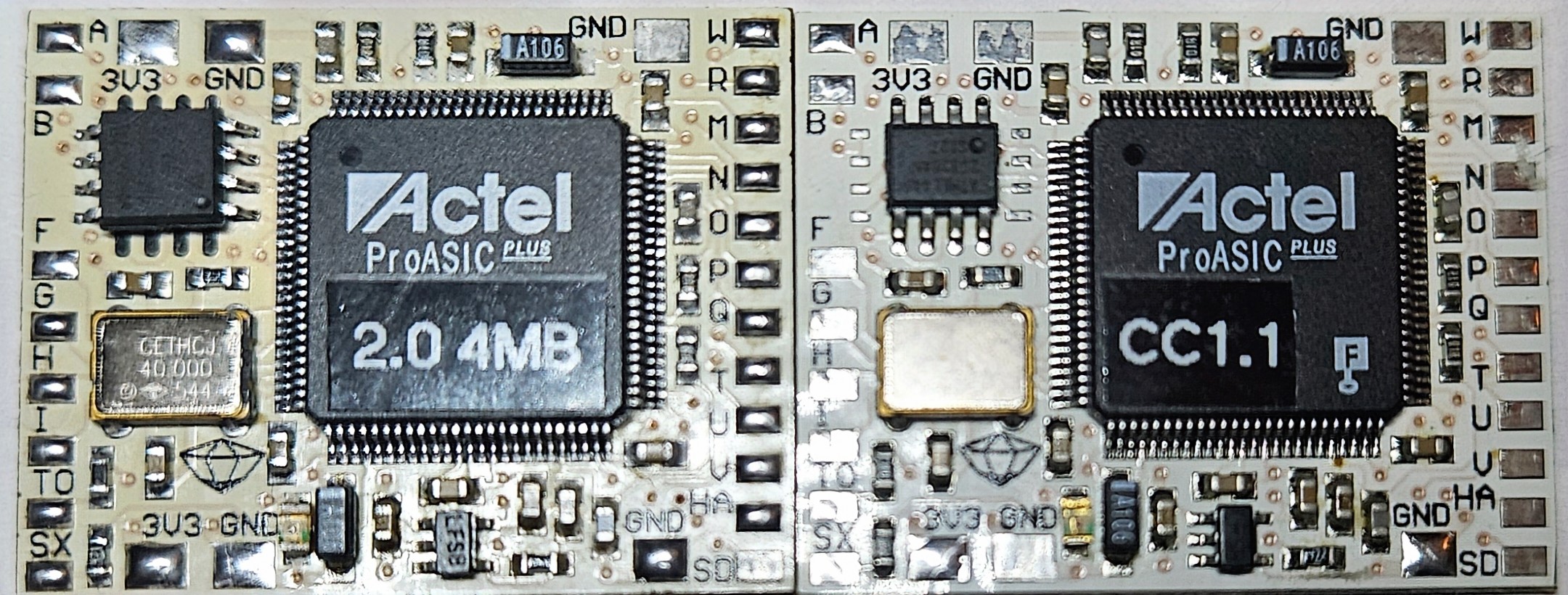

CC 1.1 and later can be upgraded with 4MB dataflash: AT45DB321D-S or AT45DB321D-MW. I have several dozen in stock. Email me if you would like to upgrade. There are no changes needed in software/firmware/scripting. Solder on and go! Reference the attached picture to see where pin 1 (the black dimple dot on the EEPROM/DATAFLASH) is and how the flash is rotated 90 degrees clockwise from the CC1.1 to the CC1.2 and later. In this case it was already a CC2.0.
Dashboard "BootManager" may be installed to and ran from
| Crystal Chip | Memcard 1 | Memcard 2 | USB | HDD | On-Chip Flash | PC Host |
|---|---|---|---|---|---|---|
| 2.0 Pro SLE | 2MB Dataflash | |||||
| 2.0 Pro | 1MB Dataflash | |||||
| 1.2 Lite | In Progress | 128KB Dataflash | ||||
| 1.1 Lite | In Progress | 4KB EEPROM | ||||
| 1.0 Lite | In Progress | 4KB EEPROM |
BootManager
Bootmanager therefore must be installed to either Dataflash, MemoryCard or HDD. This is not your usual Matrix Infinity. It is much much better
BootManager Run/Install/Remove device support
| CD/DVD | USB Fat16/32 | Memory Card | MMCE device | HDD | PC Host |
|---|---|---|---|---|---|
PC Host
Use PS2 Client and from where you installed/extracted run:
ps2client -h hostname/ip listen
Homebrew must be in same folder thatn PS2 Client is running from.
IE: ~/PS2Client/BM/APPS/APPFOLDER/
You still need an associated APPINFO.PBT
MMCE devices
It is best to install apps to MMCE devices using your PC. It seems there are bugs such as moving files between mc0/1 and mmmce0/1. I hope for updated IRXs or it just may be a limitation to the SIO2 Bus.
USB Exfat
In Progress...Using BDM Assault for Exfat allows Install/Remove but oddly not Run. BDM Assault hotswap does work. I hope to fix.
