CC 1.0 Install Diagrams

Crystal Chip 1.0 Install Note

Crystal Chip 1.0 uses a different TO point on v1-v8 than CC 1.1 and later.

Officially CC 1.0 does NOT use the TO (Tray Open) on v9 PS2s or later, and does NOT use the HA point for any install. However I have found the TO point (TRAYSW_OUT) in the schematics. I have updated V9/V10 with the TO point, and plan on doing so for V12. V12 is found as well and will add here when complete. Note added 05/2025

For installs in V12 and later reference the CC 1.1 and later diagrams.

SD point confusion

No installs use the SD point on the Crystal Chip if it has it. (1.1 and later)

Phat PS2s

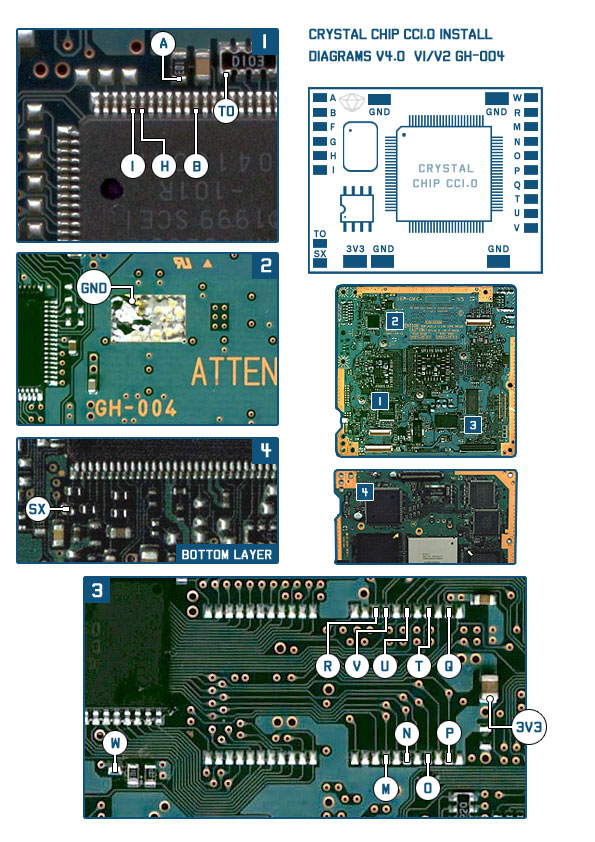

V1 V2 GH-004

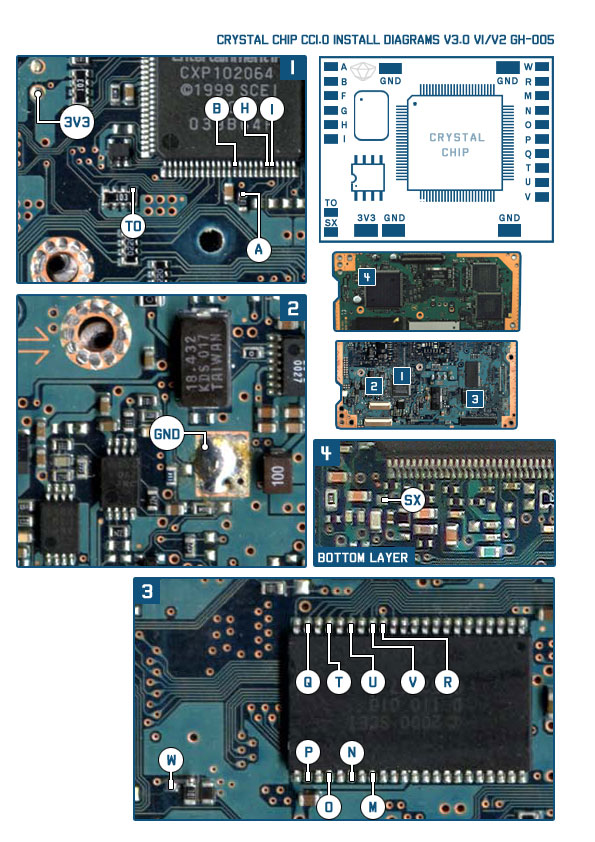

V1 V2 GH-005

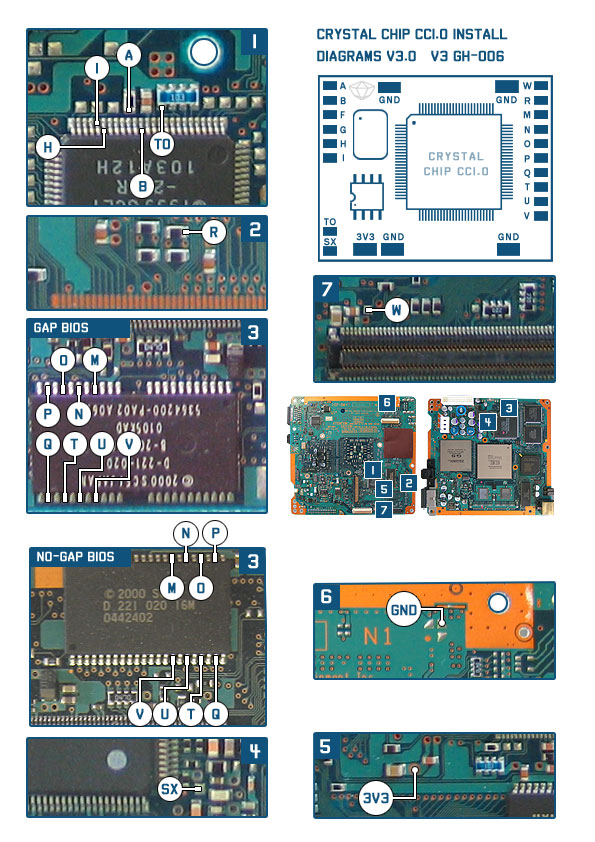

V3

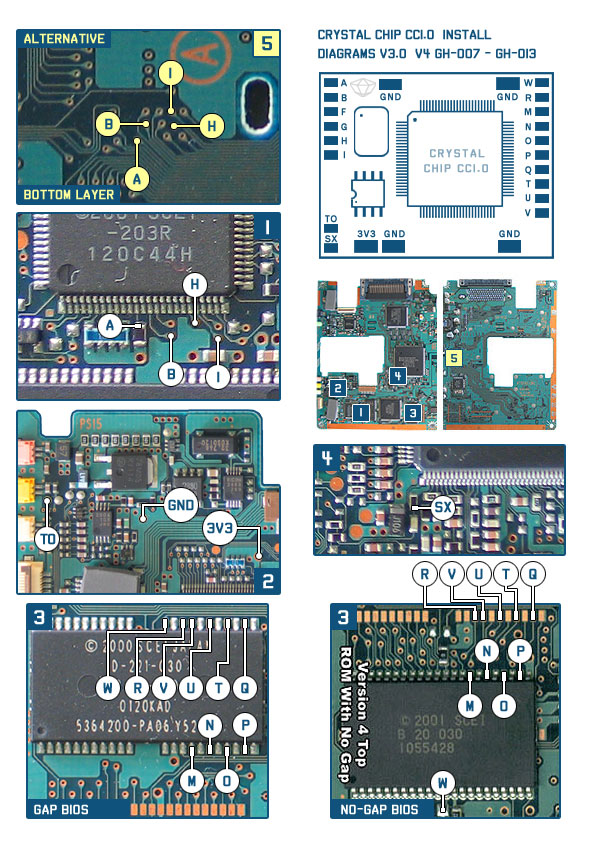

V4

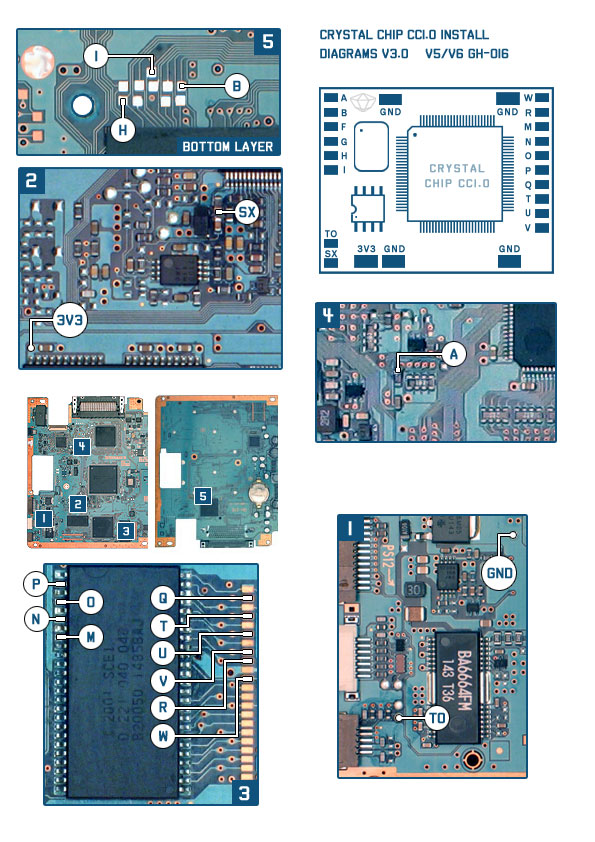

V5 V6

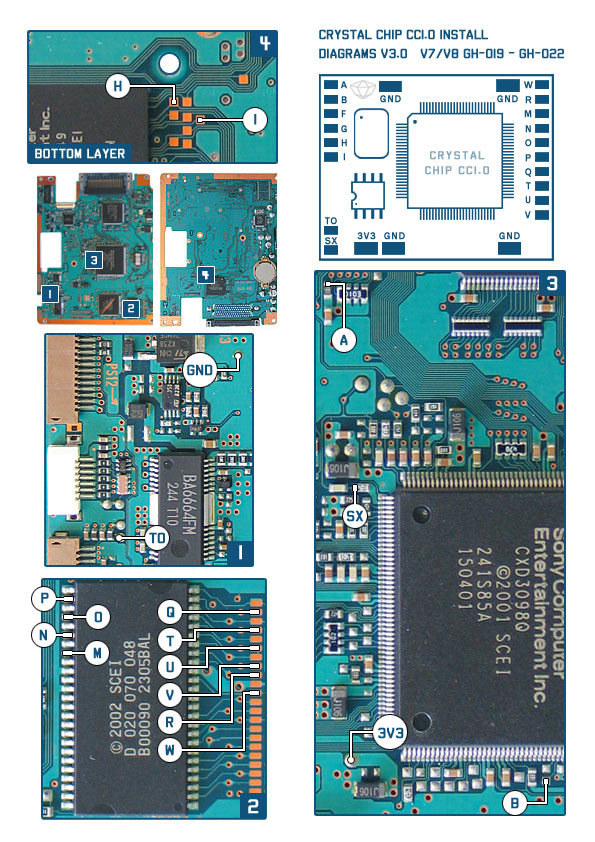

V7 V8

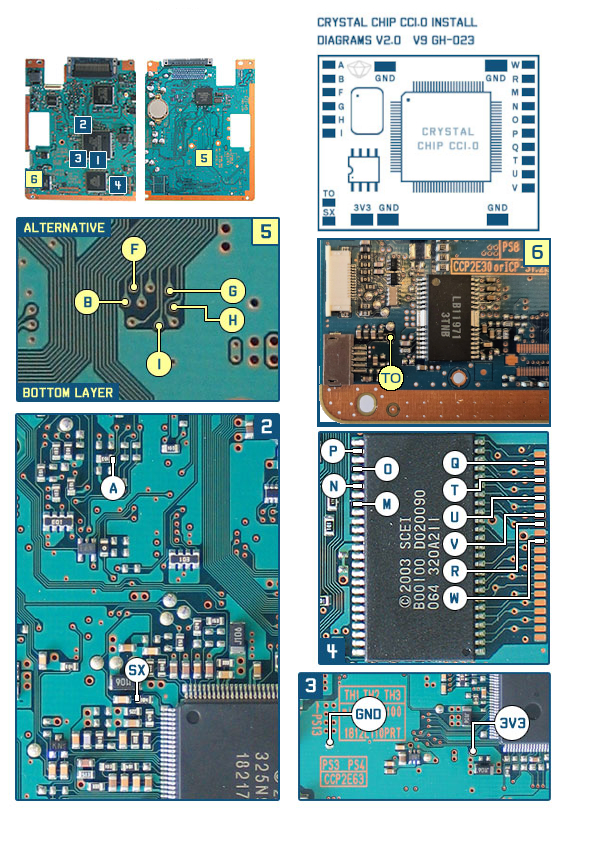

V9 GH-023

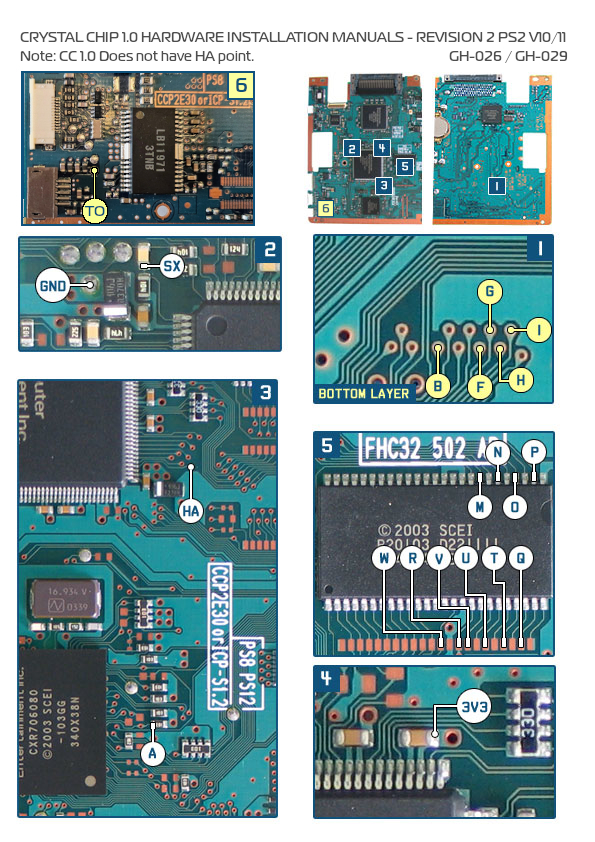

V10 V11 GH-026 GH-029

Slim PS2s

V12 GH-032 GH-035 Incoming

TO Point found, manual incoming
