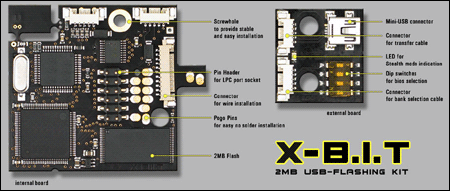

2MB flash which can store a single 2MB flash or a mix of 256k,512k or 1MB BIOS files (Possible total of six combinations).
Completely solder free design, using spring loaded pins and a screw, providing fast, reliable and idiot proof installation.
Compatible with V1.0, V1.1, V1.2, V1.3, V1.4 and V1.5
Built in programmer, for sending flash files from PC to MOD.
Flashable before installation.
Flashing operations controlled by onboard HID compliant USB controller.
Optional connectors with pre-prepared wire, for those that wish to connect the MOD by soldering.
Disable and Enable Switch, MOD status LED indicator and a Mini USB connector (for flash file transfer) on an external “control panel”.
Compatible with all third party flash files. Multi-Bios support.
Optional Eject switch reset, requires soldering only 1 wire.
All MODS packaged in anti-static bags for prevention of ESD damage.
PC flash file transfer software included.
Slick PC software G.U.I. allows easy interface to device
Mini USB cable included.
Colour coordinated PCB’s.
High quality branded components.
*Solderless solution uses spring-loaded pins connecting to LPC port.
Please note that the MODS are “flash free”, the user chooses and programs the flash of his choice to the mod using the in-built USB programming system and included Mini-USB cable.
|
|
